Jalsun Devices offers engine controllers to ensure engine safety at the same time gives complete control to the operator. In applications where it is critical to monitor RPM and to track engine run hours, Jalsun has developed Electronic RPM meter. Its fuel measurement solution assists in tracking fuel consumption and detection of fuel theft.

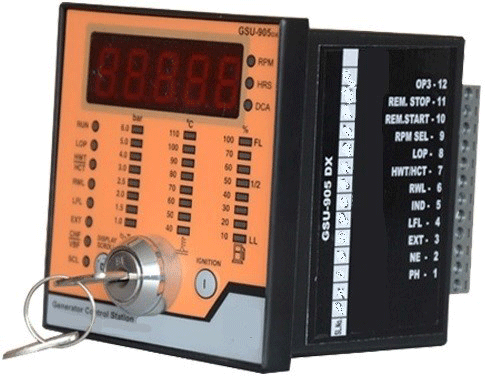

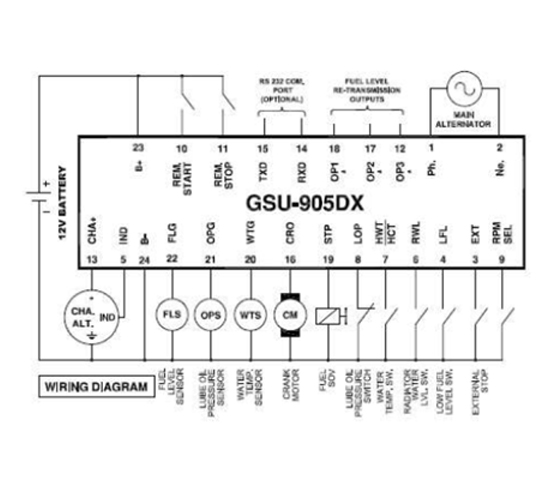

GSU-905DX DG Safety Solution
Description
The Generator Safety Unit, GSU 905Dx is a complete digital console for generators to safeguard and monitor key parameters. GSU ensures extended lifetime of the DG and reduces downtime and maintenance costs and alerts in case of fuel pilferage.
The unit allows safe starting of the engine through a remote start output and protects the system by shutting down, the moment it detects violation of safety.
GSU measures the Lube oil pressure, Water and oil temperature and Fuel level, and displays them on a Bar-graph display. A 7 segment LED display is also provided to monitor the RPM, Engine running hours and battery charging current.
The device is easy to install and use in the field. It provides optional communication port to interface for external system to read key parameters/events.
Features and Benefits
Microprocessor based design
1/2” 7 segment RED LED display helps to view the Engine parameter from a long distance
Compact size, Elegant design, easy install
Designed for Water / Air cooled engine
Suitable for High speed engines
Taper proof Engine running hour counters
Built-in key switch for ON/OFF control
Push Button for Ignition and Display scroll control
Hold mode to monitor a particular parameter
Facility for Remote Start / Stop from PIU/AMF even at a distance of 100 meters
RS232 Communication Port (Optional)
Open Collector Output for Remote telemetry of Fuel level at 10%, 40% and 90%
LLOP, HWT/HCT, RWL, LFL Charge failure / V belt Failure
Specifications
TECHNICAL
Operating Voltage
8 to 16VDC
Start / Stop Outputs
Switching through 40A relays
Input Type
-Ve switching, close on fault
Overall Dimensions in mm
96(w) x 96(h) x 65(d)
Cutout Dimension in mm
92(w) x 92(h)
Mounting
Flush Mounting
Terminal of Signals
Through pluggable terminals suitable for 2.55sq.mm wires
Operating Temperature
20 to 70⁰C
Relative Humidity
95%
ENVIRONMENTAL CONFORMANCE
Burn - in Test Ref: IS 9000 Part-III, 1977
Temperature
70⁰C
Dwell Time
90 hours
Damp Heat Test Ref: IS 9000 Part-IV, 1979
Temperature
55⁰C
Relative Humidity
95%
Dwell Time
72 hours
Condition
Energized
Temprature Cyclic Test Ref: IS 9000, Two chamber method
Upper Temperature
50⁰C
Dwell Time
30min / cycle
Lower Temperature
10⁰C
Dwell Time
30min / cycle
No of cycles
20
Total duration
20 hours
Vibration Test Ref: IS 9000, Two chamber method
Frequency Range
10-55Hz
Acceleration
3g
Duration
45min / axis
No of axis
3
Sweep Rate
1 Octave / min
Total duration
2 hour 15 min
Condition
Un-energized
Bump Test Ref: IS 9000 Part-VII, Sec. 2 1979
Acceleration
40g
No of bumps
1000 /axis
No of axis
one
Bump rate
2 bumps / sec
Total bumps
1000
Condition
Packed
Ordering Information / Recommended Jalsun Products

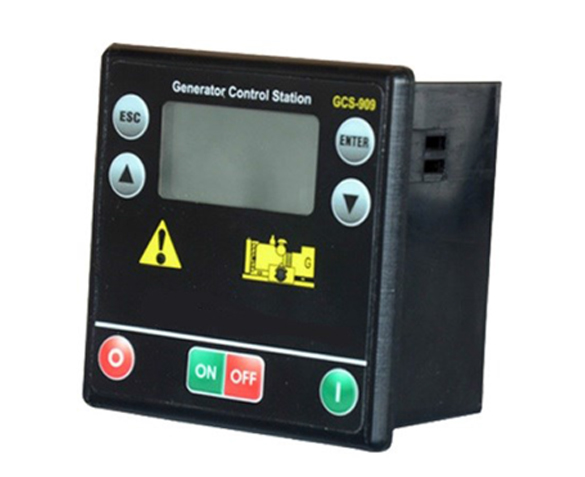

The Generator Control Station is a complete digital console for generators to monitor and control the key parameters thereby ensuring the safety of the Generator. GCS-909 is suitable for local and remote start/stop applications. The controller can be used in electronic and nonelectronic engines for providing monitoring and protection.
The same controller can also be used in Industrial engine only applications. The Controller is equipped with graphics LCD display for showing the parameters and running faults in graphical and character formats. The controller monitors key engine parameters such as Oil pressure, Water Temperature, Fuel level, battery voltage, charging current, RPM(monitored through Main alternator voltage/MPU/Charging alternator) and Frequency. It also monitors safety switches such as, High Water temperature, Low Lube Oil Pressure, Low Fuel Level, Radiator Water Level, Canopy temperature.
The Controller supports basic level configuration using keys and display; allowing field level staff to modify parameters which require customization at the time of installation. All advanced level parameters are configurable only from a PC based application through USB port. The controller offers electronic start/stop facility without need for manual keys. The controller offers many features such as setting delay values, set-points, switch configurations etc.
Features and Benefits
Microprocessor based design
Dynamic Graphic display for viewing values, status, faults and configuration
Designed for air / water cooled, high speed engines
Tamper proof Engine running hour meter
RS485 communication port with MODBUS support
USB port for PC based configuration
Power Save mode
Electronic Start / Stop scroll control
Hold mode to monitor a particular parameter
Facility to remote Start / Stop
Safety warning or Engine Stop
Configurable 5 attempt cranking
Specifications
Monitoring of Engine Safety
Low Lube Oil Pressure (LLOP)
High Coolant Temperature (HCT)
Radiator Water Level (RWL)
Low Fuel Level (LFL)
Charge Failure / V-Belt Failure (CHF/VBF)
Measurement of Sensors
Low Lube Oil Pressure (LLOP)
Water Temperature in ⁰C
Fuel Level in %
Canopy Temperature
RPM through MPU/CHA ALT/Main ALT
Measurement of DC Parameters
Battery Voltage
Charging Current
Measurement of Timer Values
RS-485 Supports MODBUS
Charging Current
Interfaces
RS-485 Supports MODBUS
USB for PC configuration
PC Configuration
Allows for setting Low and High Limits
Sensor mapping
Display
128X64 Graphics display
All engine parameters
Battery, RPM and Running hours
Unique screen for faults
Battery Voltage and Charging Current
Output Frequency
Configuration
Basic configuration of unit through keys and display
PC based tool to configure advanced pa-rameters
Configuration from MODBUS
Viewing of current parameters input/output status, events through MODBUS
Input / Output Voltages
Power supply : 8V to 36V DC
AC Voltage (RPM) : 230
Working Mode Current : 80 to 102mA
Power Save Mode : 7mA
Start/Stop output : Through high current relay of 40A rating

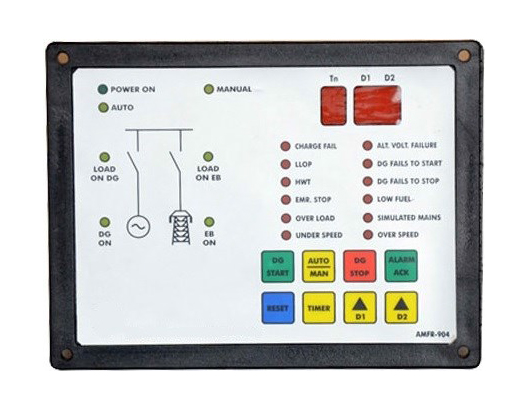

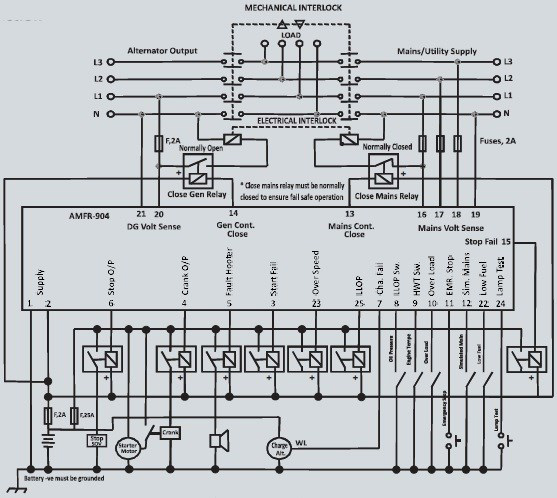

The AMFR 904 is an Auto Mains Failure Relay that offers an excellent range of engine monitoring and protection features. This microprocessor-based controller includes 8 push-buttons, 19 LED lamps, 3-digits of 7 segment LED display, 8 relay outputs, 9 digital intputs, 20 programmable parameters. Hour-meter and 2 operating modes.
The device has been designed to monitor engine temperature, low oil pressure, fails to start, fails to stop, charge failure, over speed and under speed. When the module detects a fault condition it automatically shuts down the engine.
This module also includes a built-in non re-settable engine hour counter. This controller is designed to automatically start the generator when the mains (utility) power fails. As soon as mains (utility) power is restored, the AMFR 904 will transfer the load back to the mains (utility) supply.
Features and Benefits
Microprocessor based design
Suitable for Single / Three phase application
Membrane key pads with tactile feeback
In-built Engine monitoring & protection
Compatible for Water / Air cooled Engine
Manual Start / Stop control counters
Isolated Relay outputs
Built-in Run time and Rest time programs
Tamper Proof Engine Run Hour Counter
Simulated Mains function for Remote
RS232 Communication Port (Optional)
Control of DG Set
Pluggable terminals for easy installation and maintenance
Transfers between mains (utility) and generator
On-site module configuration to match user requirement
Hours counter provides accurate information for monitoring maintenance and warranty periods
Multiple engine parameters, like Low Lube Oil Pressure (LLOP), Set fails to start, Set fails to stop, Engine Overspeed, Common alarm, HWT/HCT, LFL, simulated mains, Emergency stop, Overload, Lamp test, are monitored simultaneously
Specifications
DC Supply
8 to 16 V DC continues
Cranking Dropout
Able to survive 0V for 50ms, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries.
Alternator Input range
75V (L-N) to 333V AC (L-N) absolute maximum
Alternator Inout Frequency
50Hz @ rated engine speed (minimum: 75V AC L-N) Crank Disconnect from 15V L-N @-20Hz) Over speed +14% (+24% over shoot) Under Speed - 20%
Start /Stop Output
1.2 Amp DC at supply voltage. Switched to battery negative when active
Overall Dimension
165 (w) x 125 (h) x 65 (d)mm
Cutout Dimension in mm
149 (w) x 109 (h)mm
Operating Temperature
0-60⁰C
Relative Humidity
95%
Ordering Information / Recommended Jalsun Products

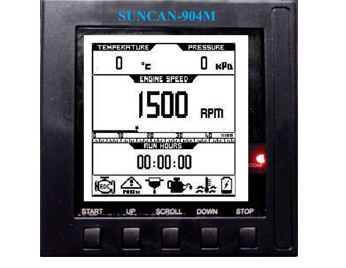

Suncan-904M is ideal solution for electronic and mechanical engines Suncan
communicates through CAN bus with controllers for monitoring sensor values, engine
parameters and alarm conditions. The values are displayed on 4 inch display with
explicit display of Alarm conditions.
Suncan-904M is easy to configure and install. It also has separate keys to control
engine operation and for scrolling. The unit has requires IP protection for panel
mounted operation , EMC/EMI certifications and necessary IEC certifications.
Features
ARM controller based compact Design
4 inch LCD Graphical Display
RPM and Run hours counters
Engine and ATS Parameters
Alarm indication and diagnostic code view
CAN J1939 support
Adjustable CAN Baud Rate
TSCI support with configurable override speed
Additional CAN Port (optional )
Engine ON-OFF Control
Configurable Digital input/output and Analog input
Specifications
Function
Range
Display
4 Inch Graphic LCD ( 168 X 168 )
Digital
Digital – Optically isolated; Transistor based digital
output
Analog
Analog inputs
Mounting
RS 485
Mounting
Panel Mounting, 96 X 96
CAN communication
CAN 2.0B, J1939
RS-485 Serial
Parameters for monitoring through MODBUS
Keys
Navigation, ON & OFF.
Operating Temperature
-10.C to 50 .C

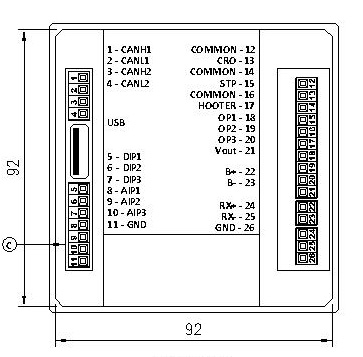

Pin Details / Connection Diagram
Pin Details

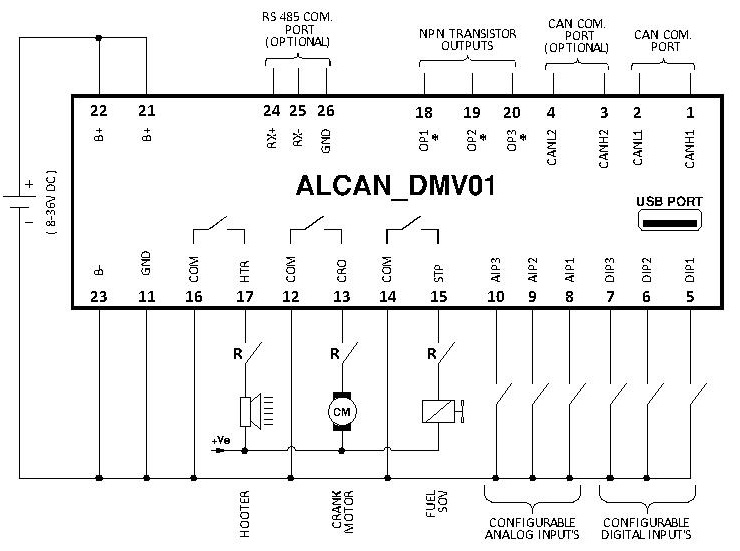

Connection Diagram

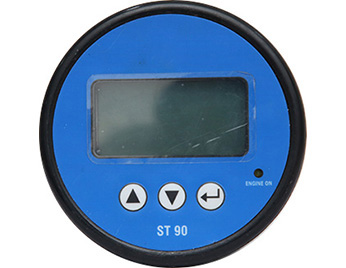

ST-90 Digital Tachometer
Description
The digital tacho hour meter from Jalsun Devices measures engine RPM in diesel generators or engine only applications. The product fits any industrial application that involves engine monitoring. It is an indigenously developed tachometer, designed to fit any harsh industrial work environment.
It also has an hour meter that displays the number of hours the engine was in operation. This feature finds an important application in Tracking, billing, and in Research and Development in Engines.
Working Principle
A Tachometer takes input from MPU Speed sensor or from the charging alternator pulse. The input signal received is then processed by the latest 32 bit ARM based micro controller and the corresponding reading is displayed in the display. Every device is calibrated at Jalsun Facility itself to ensure smooth operation.
Features and Benefits
Easy PLC Integration or web monitoring
Supports RS485 MODBUS communication for third party interface
Easily measures speeds upto 3000RPM
Event logging enabled
128 X 64 graphical backlit display for clear visibility
One non resettable cumulative run hour meter
Two user resettable trip hour meter
Auto Scroll display
3 Keys to toggle between readings and MENU options
Measures charging alternator performance
Uses latest 32 bit ARM based Micro controller
Records ON and OFF time data
Engine ON LED indicator light
Tamper proof Readings
Applications
A digital tachometer is used in measuring engine RPM and the total hours of operation. Diesel Generators used in Telecom industry need tachometer to measure engine RPM and the total hours of operation. Some of its major applications are;
Pumps & Compressors
Heavy Equipment
Marine Applications
Diesel Generators
Telecom Tower Diesel Generator units
Fire fighting Equipment
Industrial Engines
Farm / Field equipment like tractors
Specifications
Input Power Supply
8 V to 36V DC
Operating temperature Range
-5 to 60°C
Display
128 X 64 Graphical Backlit display
Output
RS 485
Mounting
Flush, Circular 85mm dia
Mounting type
Panel mount or standalone
Keys
3 keys on front board
Indicator Light
Engine ON / OFF
Dimension
Circular 85 mm diameter
Ordering Information / Sample Order Code
Ordering Information:
Format: THM318- Ax - Bx - Cx - Dx - Ex - Fx - Gx
Table A : Tachometer Type
1. Battery operated
2. External Power
Table B : Display Type
1. LED 2 X 16 Normal
2. LED 2 X 16 Backlit
3. LCD 128 X 64 Normal
4. LCD 128 X 64 Backlit
Table C : Smart Connectivity Type
1. Ethernet
2. GPRS / GSM
3. SMS
4. Cloud Interface
5. Bluetooth
Table D : Input Type
1. mA / mV
2. RS 485
3. HART
Table E : Output Type
1. mA / mV
2. RS 485
3. HART
Table F : IP Rating Type
1. IP20
2. IP50
Table G : Power Type
1. 8 - 36 V DC
2. 230V AC
Sample Order Code
THM318 - A2 - B4 - C5 - D1,2 - E1,2 - F2 - G1

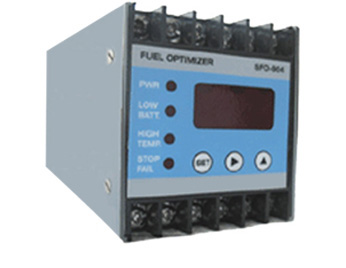

SFO 904 - FUEL OPTIMIZER
Description
An intelligent Fuel Optimizer unit optimizes the usage of Genset operations in Tele Communication towers in the event of mains failure condition. Instead of turning on the Genset immediately upon mains failure, it checks the Shelter Battery voltage condition as well as the Shelter Temperature before activating the starting of the Genset.
By the optimized usage of Genset, this unit will reduce fuel consumption. This unit can be smoothly integrated to any AMF panel currently installed in Telecom towers. It continuously monitors the EB.
Features and Benefits
Microprocessor based design
1/2” 7 segment RED LED display helps to view the Engine parameter from a long distance
Compact size, Elegant design, easy install
Designed for Water / Air cooled engine
Suitable for High speed engines
Taper proof Engine running hour counters
Built-in key switch for ON/OFF control
Push Button for Ignition and Display scroll control
Hold mode to monitor a particular parameter
Facility for Remote Start / Stop from PIU/AMF even at a distance of 100 meters
RS232 Communication Port (Optional)
Open Collector Output for Remote telemetry of Fuel level at 10%, 40% and 90%
LLOP, HWT/HCT, RWL, LFL Charge failure / V belt Failure

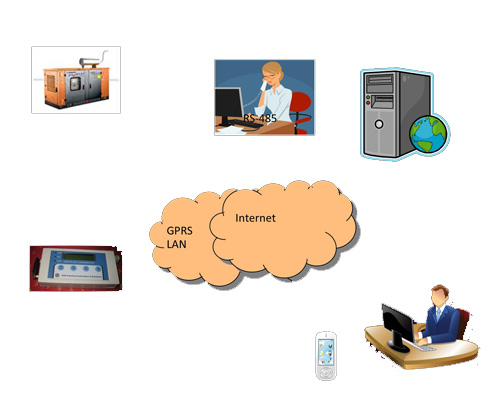

Web based Data Collection and Monitoring
Description
Custom IoT platform - works with popular
process controllers
Collects and supports data from Jalsun devices
and other compatible devices
Ability to monitor all parameters of solar plant
Connectivity over GPRS or broadband or VPN
connections towards server
Fault alerts can be sent over SMS or email
Secured data storage and retrieval from high
availability server
Customizable dash board with asset specific
graphics, accessible even over mobile phones
Optional configurable remote control access of
assets
